Hamiltoniano del sistema

$

(6)\[\begin{eqnarray} H(k) = \left[ \begin{array}{cc} t_\parallel (\frac{e^{ik_za}+e^{-ik_za}}{2}-m)& t_\perp (\frac{e^{ik_xa}-e^{-ik_xa}}{2i})-it_\perp (\frac{e^{ik_ya}-e^{-ik_ya}}{2i})\\ t_\perp (\frac{e^{ik_xa}-e^{-ik_xa}}{2i})+it_\perp (\frac{e^{ik_ya}-e^{-ik_ya}}{2i}) & -t_\parallel (\frac{e^{ik_za}+e^{-ik_za}}{2}-m) \end{array} \right] \end{eqnarray}\]

$

Show code cell source Hide code cell source

#Parámetros
a=1.0
m=0.7
tp = 1.2              #hopping paralelo
tl = tp*sqrt(1-m**2)#hopping perpendicular

##################----------------Inicia TB----------------##################
lat= [[a,0,0],[0,a,0],[0,0,a]]
orb= [[0,0,0],[1/2,1/2,1/2]] #H, solo los sitios A[000] B1/2[111]

WSH = tb_model(3,3,lat,orb)

#DIAGONAL
WSH.set_hop(tp/2, 0, 0,[0,0,1])#de que sitio a que sitio va el hoping, [la exp que lleva ese parametro], Conjugado ya no es
                                #necesario, está implícito porque es Hermitiano.
WSH.set_hop(-tp/2, 1, 1,[0,0,1])

WSH.set_onsite([-tp*m,+tp*m]) # No hay hooping, es energia

#tl*sin(k_x*a)
WSH.set_hop(tl/(2j), 0, 1,[1,0,0])   #Da el transpuesto conjudado (hermiticidad del programa)
WSH.set_hop(-tl/(2j), 0, 1,[-1,0,0]) # de 0 a 1 fuera de la diagonal
#-tl*sin(k_y*a)
WSH.set_hop(-tl/(2), 0, 1,[0,1,0])
WSH.set_hop(tl/(2), 0, 1,[0,-1,0])

###############---------Inicia extraccion de información-----------##############
k=[[0,0,-0.5],[0,0,0.0],[0,0,0.5]] # Punto por los cuales que quiero que pase. Son los punto de al simetria
                                 #unidades en unidades de V de red 1=2pi/a
k_label=["-Z",r"$\Gamma$","Z"]
(k_vec,k_dist,k_node)=WSH.k_path(k,1001,report=False)
Ek,U=WSH.solve_all(k_vec,eig_vectors=True)

#######################---Graficos----######################

fig,ax  = plt.subplots(ncols=2,nrows=1,figsize=(18,6),
                       gridspec_kw = {'wspace':0.4, 'hspace':0, 'width_ratios': [1, 1]})
ax[0].plot(k_dist,Ek[0,:],zorder=1,lw=1.5)
ax[0].plot(k_dist,Ek[1,:],zorder=1,lw=1.5)
ax[0].set_xticks(k_node) # puntos de alta simetria, valor que correspomde en k_path
ax[0].set_xticklabels(k_label )
ax[0].set_yticks([-2,0.,2])
# xsticklabels(k_label)

ax[0].spines['right'].set_visible(False)
ax[0].spines['top'].set_visible(False)
ax[0].set_ylabel(r"$E[t]$",fontsize=26)
ax[0].set_xlabel(r"$K_z$",fontsize=26)

k=[[0,0,-0.2],[0,0,0.0],[0,0,0.2]] # Punto por los cuales que quiero que pase. Son los punto de al simetria
                                 #unidades en unidades de V de red 1=2pi/a

(k_vec,k_dist,k_node)=WSH.k_path(k,1001,report=False)
Ek,U=WSH.solve_all(k_vec,eig_vectors=True)
ax[1].plot(k_dist,Ek[0,:],zorder=1,lw=1.5)
ax[1].plot(k_dist,Ek[1,:],zorder=1,lw=1.5)
 # puntos de alta simetria, valor que correspomde en k_path

ax[1].set_yticks([-0.1,0.,0.1])
ax[1].set_ylim([-0.1,0.1])
# xsticklabels(k_label)

ax[1].spines['right'].set_visible(False)
ax[1].spines['top'].set_visible(False)
ax[1].set_ylabel(r"$E[t]$",fontsize=26)
ax[1].set_xlabel(r"$K_z$",fontsize=26)

savefig("WSMGrushinBulkGap.pdf",bbox_inches='tight')

---------------------------------------------------------------------------
FileNotFoundError                         Traceback (most recent call last)
File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/texmanager.py:255, in TexManager._run_checked_subprocess(cls, command, tex, cwd)
    254 try:
--> 255     report = subprocess.check_output(
    256         command, cwd=cwd if cwd is not None else cls.texcache,
    257         stderr=subprocess.STDOUT)
    258 except FileNotFoundError as exc:

File ~/psi4conda/envs/jbook/lib/python3.11/subprocess.py:466, in check_output(timeout, *popenargs, **kwargs)
    464     kwargs['input'] = empty
--> 466 return run(*popenargs, stdout=PIPE, timeout=timeout, check=True,
    467            **kwargs).stdout

File ~/psi4conda/envs/jbook/lib/python3.11/subprocess.py:548, in run(input, capture_output, timeout, check, *popenargs, **kwargs)
    546     kwargs['stderr'] = PIPE
--> 548 with Popen(*popenargs, **kwargs) as process:
    549     try:

File ~/psi4conda/envs/jbook/lib/python3.11/subprocess.py:1024, in Popen.__init__(self, args, bufsize, executable, stdin, stdout, stderr, preexec_fn, close_fds, shell, cwd, env, universal_newlines, startupinfo, creationflags, restore_signals, start_new_session, pass_fds, user, group, extra_groups, encoding, errors, text, umask, pipesize, process_group)
   1021             self.stderr = io.TextIOWrapper(self.stderr,
   1022                     encoding=encoding, errors=errors)
-> 1024     self._execute_child(args, executable, preexec_fn, close_fds,
   1025                         pass_fds, cwd, env,
   1026                         startupinfo, creationflags, shell,
   1027                         p2cread, p2cwrite,
   1028                         c2pread, c2pwrite,
   1029                         errread, errwrite,
   1030                         restore_signals,
   1031                         gid, gids, uid, umask,
   1032                         start_new_session, process_group)
   1033 except:
   1034     # Cleanup if the child failed starting.

File ~/psi4conda/envs/jbook/lib/python3.11/subprocess.py:1917, in Popen._execute_child(self, args, executable, preexec_fn, close_fds, pass_fds, cwd, env, startupinfo, creationflags, shell, p2cread, p2cwrite, c2pread, c2pwrite, errread, errwrite, restore_signals, gid, gids, uid, umask, start_new_session, process_group)
   1916         err_msg = os.strerror(errno_num)
-> 1917     raise child_exception_type(errno_num, err_msg, err_filename)
   1918 raise child_exception_type(err_msg)

FileNotFoundError: [Errno 2] No such file or directory: 'latex'

The above exception was the direct cause of the following exception:

RuntimeError                              Traceback (most recent call last)
Cell In[4], line 68
     65 ax[1].set_ylabel(r"$E[t]$",fontsize=26)
     66 ax[1].set_xlabel(r"$K_z$",fontsize=26)
---> 68 savefig("WSMGrushinBulkGap.pdf",bbox_inches='tight')

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/pyplot.py:1023, in savefig(*args, **kwargs)
   1020 @_copy_docstring_and_deprecators(Figure.savefig)
   1021 def savefig(*args, **kwargs):
   1022     fig = gcf()
-> 1023     res = fig.savefig(*args, **kwargs)
   1024     fig.canvas.draw_idle()  # Need this if 'transparent=True', to reset colors.
   1025     return res

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/figure.py:3343, in Figure.savefig(self, fname, transparent, **kwargs)
   3339     for ax in self.axes:
   3340         stack.enter_context(
   3341             ax.patch._cm_set(facecolor='none', edgecolor='none'))
-> 3343 self.canvas.print_figure(fname, **kwargs)

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/backend_bases.py:2342, in FigureCanvasBase.print_figure(self, filename, dpi, facecolor, edgecolor, orientation, format, bbox_inches, pad_inches, bbox_extra_artists, backend, **kwargs)
   2336     renderer = _get_renderer(
   2337         self.figure,
   2338         functools.partial(
   2339             print_method, orientation=orientation)
   2340     )
   2341     with getattr(renderer, "_draw_disabled", nullcontext)():
-> 2342         self.figure.draw(renderer)
   2344 if bbox_inches:
   2345     if bbox_inches == "tight":

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/artist.py:95, in _finalize_rasterization.<locals>.draw_wrapper(artist, renderer, *args, **kwargs)
     93 @wraps(draw)
     94 def draw_wrapper(artist, renderer, *args, **kwargs):
---> 95     result = draw(artist, renderer, *args, **kwargs)
     96     if renderer._rasterizing:
     97         renderer.stop_rasterizing()

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/artist.py:72, in allow_rasterization.<locals>.draw_wrapper(artist, renderer)
     69     if artist.get_agg_filter() is not None:
     70         renderer.start_filter()
---> 72     return draw(artist, renderer)
     73 finally:
     74     if artist.get_agg_filter() is not None:

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/figure.py:3140, in Figure.draw(self, renderer)
   3137         # ValueError can occur when resizing a window.
   3139 self.patch.draw(renderer)
-> 3140 mimage._draw_list_compositing_images(
   3141     renderer, self, artists, self.suppressComposite)
   3143 for sfig in self.subfigs:
   3144     sfig.draw(renderer)

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/image.py:131, in _draw_list_compositing_images(renderer, parent, artists, suppress_composite)
    129 if not_composite or not has_images:
    130     for a in artists:
--> 131         a.draw(renderer)
    132 else:
    133     # Composite any adjacent images together
    134     image_group = []

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/artist.py:72, in allow_rasterization.<locals>.draw_wrapper(artist, renderer)
     69     if artist.get_agg_filter() is not None:
     70         renderer.start_filter()
---> 72     return draw(artist, renderer)
     73 finally:
     74     if artist.get_agg_filter() is not None:

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/axes/_base.py:3064, in _AxesBase.draw(self, renderer)
   3061 if artists_rasterized:
   3062     _draw_rasterized(self.figure, artists_rasterized, renderer)
-> 3064 mimage._draw_list_compositing_images(
   3065     renderer, self, artists, self.figure.suppressComposite)
   3067 renderer.close_group('axes')
   3068 self.stale = False

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/image.py:131, in _draw_list_compositing_images(renderer, parent, artists, suppress_composite)
    129 if not_composite or not has_images:
    130     for a in artists:
--> 131         a.draw(renderer)
    132 else:
    133     # Composite any adjacent images together
    134     image_group = []

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/artist.py:72, in allow_rasterization.<locals>.draw_wrapper(artist, renderer)
     69     if artist.get_agg_filter() is not None:
     70         renderer.start_filter()
---> 72     return draw(artist, renderer)
     73 finally:
     74     if artist.get_agg_filter() is not None:

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/axis.py:1377, in Axis.draw(self, renderer, *args, **kwargs)
   1374 renderer.open_group(__name__, gid=self.get_gid())
   1376 ticks_to_draw = self._update_ticks()
-> 1377 tlb1, tlb2 = self._get_ticklabel_bboxes(ticks_to_draw, renderer)
   1379 for tick in ticks_to_draw:
   1380     tick.draw(renderer)

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/axis.py:1304, in Axis._get_ticklabel_bboxes(self, ticks, renderer)
   1302 if renderer is None:
   1303     renderer = self.figure._get_renderer()
-> 1304 return ([tick.label1.get_window_extent(renderer)
   1305          for tick in ticks if tick.label1.get_visible()],
   1306         [tick.label2.get_window_extent(renderer)
   1307          for tick in ticks if tick.label2.get_visible()])

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/axis.py:1304, in <listcomp>(.0)
   1302 if renderer is None:
   1303     renderer = self.figure._get_renderer()
-> 1304 return ([tick.label1.get_window_extent(renderer)
   1305          for tick in ticks if tick.label1.get_visible()],
   1306         [tick.label2.get_window_extent(renderer)
   1307          for tick in ticks if tick.label2.get_visible()])

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/text.py:959, in Text.get_window_extent(self, renderer, dpi)
    954     raise RuntimeError(
    955         "Cannot get window extent of text w/o renderer. You likely "
    956         "want to call 'figure.draw_without_rendering()' first.")
    958 with cbook._setattr_cm(self.figure, dpi=dpi):
--> 959     bbox, info, descent = self._get_layout(self._renderer)
    960     x, y = self.get_unitless_position()
    961     x, y = self.get_transform().transform((x, y))

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/text.py:378, in Text._get_layout(self, renderer)
    375 ys = []
    377 # Full vertical extent of font, including ascenders and descenders:
--> 378 _, lp_h, lp_d = _get_text_metrics_with_cache(
    379     renderer, "lp", self._fontproperties,
    380     ismath="TeX" if self.get_usetex() else False, dpi=self.figure.dpi)
    381 min_dy = (lp_h - lp_d) * self._linespacing
    383 for i, line in enumerate(lines):

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/text.py:97, in _get_text_metrics_with_cache(renderer, text, fontprop, ismath, dpi)
     94 """Call ``renderer.get_text_width_height_descent``, caching the results."""
     95 # Cached based on a copy of fontprop so that later in-place mutations of
     96 # the passed-in argument do not mess up the cache.
---> 97 return _get_text_metrics_with_cache_impl(
     98     weakref.ref(renderer), text, fontprop.copy(), ismath, dpi)

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/text.py:105, in _get_text_metrics_with_cache_impl(renderer_ref, text, fontprop, ismath, dpi)
    101 @functools.lru_cache(4096)
    102 def _get_text_metrics_with_cache_impl(
    103         renderer_ref, text, fontprop, ismath, dpi):
    104     # dpi is unused, but participates in cache invalidation (via the renderer).
--> 105     return renderer_ref().get_text_width_height_descent(text, fontprop, ismath)

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/backends/_backend_pdf_ps.py:107, in RendererPDFPSBase.get_text_width_height_descent(self, s, prop, ismath)
    104 def get_text_width_height_descent(self, s, prop, ismath):
    105     # docstring inherited
    106     if ismath == "TeX":
--> 107         return super().get_text_width_height_descent(s, prop, ismath)
    108     elif ismath:
    109         parse = self._text2path.mathtext_parser.parse(s, 72, prop)

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/backend_bases.py:645, in RendererBase.get_text_width_height_descent(self, s, prop, ismath)
    641 fontsize = prop.get_size_in_points()
    643 if ismath == 'TeX':
    644     # todo: handle properties
--> 645     return self.get_texmanager().get_text_width_height_descent(
    646         s, fontsize, renderer=self)
    648 dpi = self.points_to_pixels(72)
    649 if ismath:

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/texmanager.py:368, in TexManager.get_text_width_height_descent(cls, tex, fontsize, renderer)
    366 if tex.strip() == '':
    367     return 0, 0, 0
--> 368 dvifile = cls.make_dvi(tex, fontsize)
    369 dpi_fraction = renderer.points_to_pixels(1.) if renderer else 1
    370 with dviread.Dvi(dvifile, 72 * dpi_fraction) as dvi:

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/texmanager.py:300, in TexManager.make_dvi(cls, tex, fontsize)
    298     with TemporaryDirectory(dir=cwd) as tmpdir:
    299         tmppath = Path(tmpdir)
--> 300         cls._run_checked_subprocess(
    301             ["latex", "-interaction=nonstopmode", "--halt-on-error",
    302              f"--output-directory={tmppath.name}",
    303              f"{texfile.name}"], tex, cwd=cwd)
    304         (tmppath / Path(dvifile).name).replace(dvifile)
    305 return dvifile

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/texmanager.py:259, in TexManager._run_checked_subprocess(cls, command, tex, cwd)
    255     report = subprocess.check_output(
    256         command, cwd=cwd if cwd is not None else cls.texcache,
    257         stderr=subprocess.STDOUT)
    258 except FileNotFoundError as exc:
--> 259     raise RuntimeError(
    260         'Failed to process string with tex because {} could not be '
    261         'found'.format(command[0])) from exc
    262 except subprocess.CalledProcessError as exc:
    263     raise RuntimeError(
    264         '{prog} was not able to process the following string:\n'
    265         '{tex!r}\n\n'
   (...)
    272             exc=exc.output.decode('utf-8', 'backslashreplace'))
    273         ) from None

RuntimeError: Failed to process string with tex because latex could not be found

Error in callback <function _draw_all_if_interactive at 0x7f3ccfe01300> (for post_execute):

---------------------------------------------------------------------------
FileNotFoundError                         Traceback (most recent call last)
File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/texmanager.py:255, in TexManager._run_checked_subprocess(cls, command, tex, cwd)
    254 try:
--> 255     report = subprocess.check_output(
    256         command, cwd=cwd if cwd is not None else cls.texcache,
    257         stderr=subprocess.STDOUT)
    258 except FileNotFoundError as exc:

File ~/psi4conda/envs/jbook/lib/python3.11/subprocess.py:466, in check_output(timeout, *popenargs, **kwargs)
    464     kwargs['input'] = empty
--> 466 return run(*popenargs, stdout=PIPE, timeout=timeout, check=True,
    467            **kwargs).stdout

File ~/psi4conda/envs/jbook/lib/python3.11/subprocess.py:548, in run(input, capture_output, timeout, check, *popenargs, **kwargs)
    546     kwargs['stderr'] = PIPE
--> 548 with Popen(*popenargs, **kwargs) as process:
    549     try:

File ~/psi4conda/envs/jbook/lib/python3.11/subprocess.py:1024, in Popen.__init__(self, args, bufsize, executable, stdin, stdout, stderr, preexec_fn, close_fds, shell, cwd, env, universal_newlines, startupinfo, creationflags, restore_signals, start_new_session, pass_fds, user, group, extra_groups, encoding, errors, text, umask, pipesize, process_group)
   1021             self.stderr = io.TextIOWrapper(self.stderr,
   1022                     encoding=encoding, errors=errors)
-> 1024     self._execute_child(args, executable, preexec_fn, close_fds,
   1025                         pass_fds, cwd, env,
   1026                         startupinfo, creationflags, shell,
   1027                         p2cread, p2cwrite,
   1028                         c2pread, c2pwrite,
   1029                         errread, errwrite,
   1030                         restore_signals,
   1031                         gid, gids, uid, umask,
   1032                         start_new_session, process_group)
   1033 except:
   1034     # Cleanup if the child failed starting.

File ~/psi4conda/envs/jbook/lib/python3.11/subprocess.py:1917, in Popen._execute_child(self, args, executable, preexec_fn, close_fds, pass_fds, cwd, env, startupinfo, creationflags, shell, p2cread, p2cwrite, c2pread, c2pwrite, errread, errwrite, restore_signals, gid, gids, uid, umask, start_new_session, process_group)
   1916         err_msg = os.strerror(errno_num)
-> 1917     raise child_exception_type(errno_num, err_msg, err_filename)
   1918 raise child_exception_type(err_msg)

FileNotFoundError: [Errno 2] No such file or directory: 'latex'

The above exception was the direct cause of the following exception:

RuntimeError                              Traceback (most recent call last)
File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/pyplot.py:120, in _draw_all_if_interactive()
    118 def _draw_all_if_interactive():
    119     if matplotlib.is_interactive():
--> 120         draw_all()

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/_pylab_helpers.py:132, in Gcf.draw_all(cls, force)
    130 for manager in cls.get_all_fig_managers():
    131     if force or manager.canvas.figure.stale:
--> 132         manager.canvas.draw_idle()

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/backend_bases.py:2082, in FigureCanvasBase.draw_idle(self, *args, **kwargs)
   2080 if not self._is_idle_drawing:
   2081     with self._idle_draw_cntx():
-> 2082         self.draw(*args, **kwargs)

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/backends/backend_agg.py:400, in FigureCanvasAgg.draw(self)
    396 # Acquire a lock on the shared font cache.
    397 with RendererAgg.lock, \
    398      (self.toolbar._wait_cursor_for_draw_cm() if self.toolbar
    399       else nullcontext()):
--> 400     self.figure.draw(self.renderer)
    401     # A GUI class may be need to update a window using this draw, so
    402     # don't forget to call the superclass.
    403     super().draw()

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/artist.py:95, in _finalize_rasterization.<locals>.draw_wrapper(artist, renderer, *args, **kwargs)
     93 @wraps(draw)
     94 def draw_wrapper(artist, renderer, *args, **kwargs):
---> 95     result = draw(artist, renderer, *args, **kwargs)
     96     if renderer._rasterizing:
     97         renderer.stop_rasterizing()

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/artist.py:72, in allow_rasterization.<locals>.draw_wrapper(artist, renderer)
     69     if artist.get_agg_filter() is not None:
     70         renderer.start_filter()
---> 72     return draw(artist, renderer)
     73 finally:
     74     if artist.get_agg_filter() is not None:

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/figure.py:3140, in Figure.draw(self, renderer)
   3137         # ValueError can occur when resizing a window.
   3139 self.patch.draw(renderer)
-> 3140 mimage._draw_list_compositing_images(
   3141     renderer, self, artists, self.suppressComposite)
   3143 for sfig in self.subfigs:
   3144     sfig.draw(renderer)

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/image.py:131, in _draw_list_compositing_images(renderer, parent, artists, suppress_composite)
    129 if not_composite or not has_images:
    130     for a in artists:
--> 131         a.draw(renderer)
    132 else:
    133     # Composite any adjacent images together
    134     image_group = []

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/artist.py:72, in allow_rasterization.<locals>.draw_wrapper(artist, renderer)
     69     if artist.get_agg_filter() is not None:
     70         renderer.start_filter()
---> 72     return draw(artist, renderer)
     73 finally:
     74     if artist.get_agg_filter() is not None:

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/axes/_base.py:3064, in _AxesBase.draw(self, renderer)
   3061 if artists_rasterized:
   3062     _draw_rasterized(self.figure, artists_rasterized, renderer)
-> 3064 mimage._draw_list_compositing_images(
   3065     renderer, self, artists, self.figure.suppressComposite)
   3067 renderer.close_group('axes')
   3068 self.stale = False

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/image.py:131, in _draw_list_compositing_images(renderer, parent, artists, suppress_composite)
    129 if not_composite or not has_images:
    130     for a in artists:
--> 131         a.draw(renderer)
    132 else:
    133     # Composite any adjacent images together
    134     image_group = []

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/artist.py:72, in allow_rasterization.<locals>.draw_wrapper(artist, renderer)
     69     if artist.get_agg_filter() is not None:
     70         renderer.start_filter()
---> 72     return draw(artist, renderer)
     73 finally:
     74     if artist.get_agg_filter() is not None:

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/axis.py:1377, in Axis.draw(self, renderer, *args, **kwargs)
   1374 renderer.open_group(__name__, gid=self.get_gid())
   1376 ticks_to_draw = self._update_ticks()
-> 1377 tlb1, tlb2 = self._get_ticklabel_bboxes(ticks_to_draw, renderer)
   1379 for tick in ticks_to_draw:
   1380     tick.draw(renderer)

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/axis.py:1304, in Axis._get_ticklabel_bboxes(self, ticks, renderer)
   1302 if renderer is None:
   1303     renderer = self.figure._get_renderer()
-> 1304 return ([tick.label1.get_window_extent(renderer)
   1305          for tick in ticks if tick.label1.get_visible()],
   1306         [tick.label2.get_window_extent(renderer)
   1307          for tick in ticks if tick.label2.get_visible()])

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/axis.py:1304, in <listcomp>(.0)
   1302 if renderer is None:
   1303     renderer = self.figure._get_renderer()
-> 1304 return ([tick.label1.get_window_extent(renderer)
   1305          for tick in ticks if tick.label1.get_visible()],
   1306         [tick.label2.get_window_extent(renderer)
   1307          for tick in ticks if tick.label2.get_visible()])

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/text.py:959, in Text.get_window_extent(self, renderer, dpi)
    954     raise RuntimeError(
    955         "Cannot get window extent of text w/o renderer. You likely "
    956         "want to call 'figure.draw_without_rendering()' first.")
    958 with cbook._setattr_cm(self.figure, dpi=dpi):
--> 959     bbox, info, descent = self._get_layout(self._renderer)
    960     x, y = self.get_unitless_position()
    961     x, y = self.get_transform().transform((x, y))

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/text.py:378, in Text._get_layout(self, renderer)
    375 ys = []
    377 # Full vertical extent of font, including ascenders and descenders:
--> 378 _, lp_h, lp_d = _get_text_metrics_with_cache(
    379     renderer, "lp", self._fontproperties,
    380     ismath="TeX" if self.get_usetex() else False, dpi=self.figure.dpi)
    381 min_dy = (lp_h - lp_d) * self._linespacing
    383 for i, line in enumerate(lines):

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/text.py:97, in _get_text_metrics_with_cache(renderer, text, fontprop, ismath, dpi)
     94 """Call ``renderer.get_text_width_height_descent``, caching the results."""
     95 # Cached based on a copy of fontprop so that later in-place mutations of
     96 # the passed-in argument do not mess up the cache.
---> 97 return _get_text_metrics_with_cache_impl(
     98     weakref.ref(renderer), text, fontprop.copy(), ismath, dpi)

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/text.py:105, in _get_text_metrics_with_cache_impl(renderer_ref, text, fontprop, ismath, dpi)
    101 @functools.lru_cache(4096)
    102 def _get_text_metrics_with_cache_impl(
    103         renderer_ref, text, fontprop, ismath, dpi):
    104     # dpi is unused, but participates in cache invalidation (via the renderer).
--> 105     return renderer_ref().get_text_width_height_descent(text, fontprop, ismath)

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/backends/backend_agg.py:226, in RendererAgg.get_text_width_height_descent(self, s, prop, ismath)
    224 _api.check_in_list(["TeX", True, False], ismath=ismath)
    225 if ismath == "TeX":
--> 226     return super().get_text_width_height_descent(s, prop, ismath)
    228 if ismath:
    229     ox, oy, width, height, descent, font_image = \
    230         self.mathtext_parser.parse(s, self.dpi, prop)

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/backend_bases.py:645, in RendererBase.get_text_width_height_descent(self, s, prop, ismath)
    641 fontsize = prop.get_size_in_points()
    643 if ismath == 'TeX':
    644     # todo: handle properties
--> 645     return self.get_texmanager().get_text_width_height_descent(
    646         s, fontsize, renderer=self)
    648 dpi = self.points_to_pixels(72)
    649 if ismath:

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/texmanager.py:368, in TexManager.get_text_width_height_descent(cls, tex, fontsize, renderer)
    366 if tex.strip() == '':
    367     return 0, 0, 0
--> 368 dvifile = cls.make_dvi(tex, fontsize)
    369 dpi_fraction = renderer.points_to_pixels(1.) if renderer else 1
    370 with dviread.Dvi(dvifile, 72 * dpi_fraction) as dvi:

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/texmanager.py:300, in TexManager.make_dvi(cls, tex, fontsize)
    298     with TemporaryDirectory(dir=cwd) as tmpdir:
    299         tmppath = Path(tmpdir)
--> 300         cls._run_checked_subprocess(
    301             ["latex", "-interaction=nonstopmode", "--halt-on-error",
    302              f"--output-directory={tmppath.name}",
    303              f"{texfile.name}"], tex, cwd=cwd)
    304         (tmppath / Path(dvifile).name).replace(dvifile)
    305 return dvifile

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/texmanager.py:259, in TexManager._run_checked_subprocess(cls, command, tex, cwd)
    255     report = subprocess.check_output(
    256         command, cwd=cwd if cwd is not None else cls.texcache,
    257         stderr=subprocess.STDOUT)
    258 except FileNotFoundError as exc:
--> 259     raise RuntimeError(
    260         'Failed to process string with tex because {} could not be '
    261         'found'.format(command[0])) from exc
    262 except subprocess.CalledProcessError as exc:
    263     raise RuntimeError(
    264         '{prog} was not able to process the following string:\n'
    265         '{tex!r}\n\n'
   (...)
    272             exc=exc.output.decode('utf-8', 'backslashreplace'))
    273         ) from None

RuntimeError: Failed to process string with tex because latex could not be found

---------------------------------------------------------------------------
FileNotFoundError                         Traceback (most recent call last)
File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/texmanager.py:255, in TexManager._run_checked_subprocess(cls, command, tex, cwd)
    254 try:
--> 255     report = subprocess.check_output(
    256         command, cwd=cwd if cwd is not None else cls.texcache,
    257         stderr=subprocess.STDOUT)
    258 except FileNotFoundError as exc:

File ~/psi4conda/envs/jbook/lib/python3.11/subprocess.py:466, in check_output(timeout, *popenargs, **kwargs)
    464     kwargs['input'] = empty
--> 466 return run(*popenargs, stdout=PIPE, timeout=timeout, check=True,
    467            **kwargs).stdout

File ~/psi4conda/envs/jbook/lib/python3.11/subprocess.py:548, in run(input, capture_output, timeout, check, *popenargs, **kwargs)
    546     kwargs['stderr'] = PIPE
--> 548 with Popen(*popenargs, **kwargs) as process:
    549     try:

File ~/psi4conda/envs/jbook/lib/python3.11/subprocess.py:1024, in Popen.__init__(self, args, bufsize, executable, stdin, stdout, stderr, preexec_fn, close_fds, shell, cwd, env, universal_newlines, startupinfo, creationflags, restore_signals, start_new_session, pass_fds, user, group, extra_groups, encoding, errors, text, umask, pipesize, process_group)
   1021             self.stderr = io.TextIOWrapper(self.stderr,
   1022                     encoding=encoding, errors=errors)
-> 1024     self._execute_child(args, executable, preexec_fn, close_fds,
   1025                         pass_fds, cwd, env,
   1026                         startupinfo, creationflags, shell,
   1027                         p2cread, p2cwrite,
   1028                         c2pread, c2pwrite,
   1029                         errread, errwrite,
   1030                         restore_signals,
   1031                         gid, gids, uid, umask,
   1032                         start_new_session, process_group)
   1033 except:
   1034     # Cleanup if the child failed starting.

File ~/psi4conda/envs/jbook/lib/python3.11/subprocess.py:1917, in Popen._execute_child(self, args, executable, preexec_fn, close_fds, pass_fds, cwd, env, startupinfo, creationflags, shell, p2cread, p2cwrite, c2pread, c2pwrite, errread, errwrite, restore_signals, gid, gids, uid, umask, start_new_session, process_group)
   1916         err_msg = os.strerror(errno_num)
-> 1917     raise child_exception_type(errno_num, err_msg, err_filename)
   1918 raise child_exception_type(err_msg)

FileNotFoundError: [Errno 2] No such file or directory: 'latex'

The above exception was the direct cause of the following exception:

RuntimeError                              Traceback (most recent call last)
File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/IPython/core/formatters.py:340, in BaseFormatter.__call__(self, obj)
    338     pass
    339 else:
--> 340     return printer(obj)
    341 # Finally look for special method names
    342 method = get_real_method(obj, self.print_method)

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/IPython/core/pylabtools.py:152, in print_figure(fig, fmt, bbox_inches, base64, **kwargs)
    149     from matplotlib.backend_bases import FigureCanvasBase
    150     FigureCanvasBase(fig)
--> 152 fig.canvas.print_figure(bytes_io, **kw)
    153 data = bytes_io.getvalue()
    154 if fmt == 'svg':

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/backend_bases.py:2342, in FigureCanvasBase.print_figure(self, filename, dpi, facecolor, edgecolor, orientation, format, bbox_inches, pad_inches, bbox_extra_artists, backend, **kwargs)
   2336     renderer = _get_renderer(
   2337         self.figure,
   2338         functools.partial(
   2339             print_method, orientation=orientation)
   2340     )
   2341     with getattr(renderer, "_draw_disabled", nullcontext)():
-> 2342         self.figure.draw(renderer)
   2344 if bbox_inches:
   2345     if bbox_inches == "tight":

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/artist.py:95, in _finalize_rasterization.<locals>.draw_wrapper(artist, renderer, *args, **kwargs)
     93 @wraps(draw)
     94 def draw_wrapper(artist, renderer, *args, **kwargs):
---> 95     result = draw(artist, renderer, *args, **kwargs)
     96     if renderer._rasterizing:
     97         renderer.stop_rasterizing()

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/artist.py:72, in allow_rasterization.<locals>.draw_wrapper(artist, renderer)
     69     if artist.get_agg_filter() is not None:
     70         renderer.start_filter()
---> 72     return draw(artist, renderer)
     73 finally:
     74     if artist.get_agg_filter() is not None:

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/figure.py:3140, in Figure.draw(self, renderer)
   3137         # ValueError can occur when resizing a window.
   3139 self.patch.draw(renderer)
-> 3140 mimage._draw_list_compositing_images(
   3141     renderer, self, artists, self.suppressComposite)
   3143 for sfig in self.subfigs:
   3144     sfig.draw(renderer)

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/image.py:131, in _draw_list_compositing_images(renderer, parent, artists, suppress_composite)
    129 if not_composite or not has_images:
    130     for a in artists:
--> 131         a.draw(renderer)
    132 else:
    133     # Composite any adjacent images together
    134     image_group = []

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/artist.py:72, in allow_rasterization.<locals>.draw_wrapper(artist, renderer)
     69     if artist.get_agg_filter() is not None:
     70         renderer.start_filter()
---> 72     return draw(artist, renderer)
     73 finally:
     74     if artist.get_agg_filter() is not None:

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/axes/_base.py:3064, in _AxesBase.draw(self, renderer)
   3061 if artists_rasterized:
   3062     _draw_rasterized(self.figure, artists_rasterized, renderer)
-> 3064 mimage._draw_list_compositing_images(
   3065     renderer, self, artists, self.figure.suppressComposite)
   3067 renderer.close_group('axes')
   3068 self.stale = False

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/image.py:131, in _draw_list_compositing_images(renderer, parent, artists, suppress_composite)
    129 if not_composite or not has_images:
    130     for a in artists:
--> 131         a.draw(renderer)
    132 else:
    133     # Composite any adjacent images together
    134     image_group = []

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/artist.py:72, in allow_rasterization.<locals>.draw_wrapper(artist, renderer)
     69     if artist.get_agg_filter() is not None:
     70         renderer.start_filter()
---> 72     return draw(artist, renderer)
     73 finally:
     74     if artist.get_agg_filter() is not None:

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/axis.py:1377, in Axis.draw(self, renderer, *args, **kwargs)
   1374 renderer.open_group(__name__, gid=self.get_gid())
   1376 ticks_to_draw = self._update_ticks()
-> 1377 tlb1, tlb2 = self._get_ticklabel_bboxes(ticks_to_draw, renderer)
   1379 for tick in ticks_to_draw:
   1380     tick.draw(renderer)

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/axis.py:1304, in Axis._get_ticklabel_bboxes(self, ticks, renderer)
   1302 if renderer is None:
   1303     renderer = self.figure._get_renderer()
-> 1304 return ([tick.label1.get_window_extent(renderer)
   1305          for tick in ticks if tick.label1.get_visible()],
   1306         [tick.label2.get_window_extent(renderer)
   1307          for tick in ticks if tick.label2.get_visible()])

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/axis.py:1304, in <listcomp>(.0)
   1302 if renderer is None:
   1303     renderer = self.figure._get_renderer()
-> 1304 return ([tick.label1.get_window_extent(renderer)
   1305          for tick in ticks if tick.label1.get_visible()],
   1306         [tick.label2.get_window_extent(renderer)
   1307          for tick in ticks if tick.label2.get_visible()])

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/text.py:959, in Text.get_window_extent(self, renderer, dpi)
    954     raise RuntimeError(
    955         "Cannot get window extent of text w/o renderer. You likely "
    956         "want to call 'figure.draw_without_rendering()' first.")
    958 with cbook._setattr_cm(self.figure, dpi=dpi):
--> 959     bbox, info, descent = self._get_layout(self._renderer)
    960     x, y = self.get_unitless_position()
    961     x, y = self.get_transform().transform((x, y))

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/text.py:378, in Text._get_layout(self, renderer)
    375 ys = []
    377 # Full vertical extent of font, including ascenders and descenders:
--> 378 _, lp_h, lp_d = _get_text_metrics_with_cache(
    379     renderer, "lp", self._fontproperties,
    380     ismath="TeX" if self.get_usetex() else False, dpi=self.figure.dpi)
    381 min_dy = (lp_h - lp_d) * self._linespacing
    383 for i, line in enumerate(lines):

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/text.py:97, in _get_text_metrics_with_cache(renderer, text, fontprop, ismath, dpi)
     94 """Call ``renderer.get_text_width_height_descent``, caching the results."""
     95 # Cached based on a copy of fontprop so that later in-place mutations of
     96 # the passed-in argument do not mess up the cache.
---> 97 return _get_text_metrics_with_cache_impl(
     98     weakref.ref(renderer), text, fontprop.copy(), ismath, dpi)

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/text.py:105, in _get_text_metrics_with_cache_impl(renderer_ref, text, fontprop, ismath, dpi)
    101 @functools.lru_cache(4096)
    102 def _get_text_metrics_with_cache_impl(
    103         renderer_ref, text, fontprop, ismath, dpi):
    104     # dpi is unused, but participates in cache invalidation (via the renderer).
--> 105     return renderer_ref().get_text_width_height_descent(text, fontprop, ismath)

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/backends/backend_agg.py:226, in RendererAgg.get_text_width_height_descent(self, s, prop, ismath)
    224 _api.check_in_list(["TeX", True, False], ismath=ismath)
    225 if ismath == "TeX":
--> 226     return super().get_text_width_height_descent(s, prop, ismath)
    228 if ismath:
    229     ox, oy, width, height, descent, font_image = \
    230         self.mathtext_parser.parse(s, self.dpi, prop)

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/backend_bases.py:645, in RendererBase.get_text_width_height_descent(self, s, prop, ismath)
    641 fontsize = prop.get_size_in_points()
    643 if ismath == 'TeX':
    644     # todo: handle properties
--> 645     return self.get_texmanager().get_text_width_height_descent(
    646         s, fontsize, renderer=self)
    648 dpi = self.points_to_pixels(72)
    649 if ismath:

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/texmanager.py:368, in TexManager.get_text_width_height_descent(cls, tex, fontsize, renderer)
    366 if tex.strip() == '':
    367     return 0, 0, 0
--> 368 dvifile = cls.make_dvi(tex, fontsize)
    369 dpi_fraction = renderer.points_to_pixels(1.) if renderer else 1
    370 with dviread.Dvi(dvifile, 72 * dpi_fraction) as dvi:

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/texmanager.py:300, in TexManager.make_dvi(cls, tex, fontsize)
    298     with TemporaryDirectory(dir=cwd) as tmpdir:
    299         tmppath = Path(tmpdir)
--> 300         cls._run_checked_subprocess(
    301             ["latex", "-interaction=nonstopmode", "--halt-on-error",
    302              f"--output-directory={tmppath.name}",
    303              f"{texfile.name}"], tex, cwd=cwd)
    304         (tmppath / Path(dvifile).name).replace(dvifile)
    305 return dvifile

File ~/psi4conda/envs/jbook/lib/python3.11/site-packages/matplotlib/texmanager.py:259, in TexManager._run_checked_subprocess(cls, command, tex, cwd)
    255     report = subprocess.check_output(
    256         command, cwd=cwd if cwd is not None else cls.texcache,
    257         stderr=subprocess.STDOUT)
    258 except FileNotFoundError as exc:
--> 259     raise RuntimeError(
    260         'Failed to process string with tex because {} could not be '
    261         'found'.format(command[0])) from exc
    262 except subprocess.CalledProcessError as exc:
    263     raise RuntimeError(
    264         '{prog} was not able to process the following string:\n'
    265         '{tex!r}\n\n'
   (...)
    272             exc=exc.output.decode('utf-8', 'backslashreplace'))
    273         ) from None

RuntimeError: Failed to process string with tex because latex could not be found

<Figure size 1800x600 with 2 Axes>

Show code cell source Hide code cell source

NY_WSM=WSH.cut_piece(100,1,glue_edgs=False) #numero de reps, en la direccion 0x,1y,2z, mi sistema se redujo dimensionalmente
                                            #modo rebanada de jamón
NX_WSM=WSH.cut_piece(100,0,glue_edgs=False)
NZ_WSM=WSH.cut_piece(100,2,glue_edgs=False)

Show code cell source Hide code cell source

k=[[-0.5,0],[0.0,0],[0.5,0]] # Punto por los cuales que quiero que pase. Son los punto de al simetria
# k=[[0,0.0],[0.0,0.25],[0,.5]]                                 #unidades en unidades de V de red 1=2pi/a
# k=[[-,0],[0.0,0],[1.0,0]]
k_label1=[r"$-Z$",r"$\Gamma$",r"$Z$"]
(k_vec,k_dist,k_node)=NX_WSM.k_path(k,501, report=False)
EkfinX=NX_WSM.solve_all(k_vec)
k=[[0,-0.5],[0.,0],[0,0.5]]
k_label2=[r"$-X$",r"$\Gamma$",r"$X$"]
(k_vec,k_dist,k_node)=NY_WSM.k_path(k,501, report=False)
EkfinY=NY_WSM.solve_all(k_vec)
k=[[-0.5,0],[0.0,0],[0.5,0]]
k_label3=[r"$-Y$",r"$\Gamma$",r"$Y$"]
(k_vec,k_dist,k_node)=NZ_WSM.k_path(k,501, report=False)
EkfinZ=NZ_WSM.solve_all(k_vec)

Show code cell source Hide code cell source

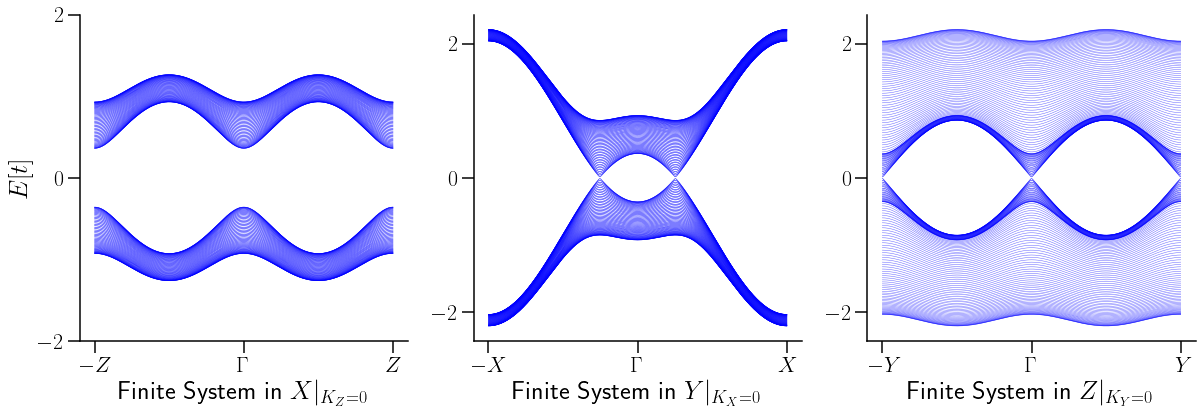

fig,ax  = plt.subplots(ncols=3,nrows=1,figsize=(20,6),
                       gridspec_kw = {'wspace':0.2, 'hspace':0, 'width_ratios': [1, 1,1]})
for n in range(0, len(EkfinX)):

    ax[0].plot(k_dist,EkfinX[n,:], c='blue', alpha=0.6,linewidth=0.5) #la long de Ek fin tiene todo
    ax[1].plot(k_dist,EkfinY[n,:], c='blue', alpha=0.6,linewidth=0.5) #la long de Ek fin tiene todo
    ax[2].plot(k_dist,EkfinZ[n,:], c='blue', alpha=0.6,linewidth=0.5) #la long de Ek fin tiene todo

for i in range(0,3):
    ax[i].set_xticks(k_node) # puntos de alta simetria, valor que correspomde en k_path

    ax[i].set_yticks([-2,0.,2])
    # xsticklabels(k_label)

    ax[i].spines['right'].set_visible(False)
    ax[i].spines['top'].set_visible(False)
ax[0].set_xticklabels(k_label1 )
ax[1].set_xticklabels(k_label2 )
ax[2].set_xticklabels(k_label3 )
ax[0].set_ylabel(r"$E[t]$",fontsize=26)
ax[0].set_xlabel(r"Finite System in $X|_{K_Z=0}$",fontsize=26)
ax[1].set_xlabel(r"Finite System in $Y|_{K_X=0}$",fontsize=26)
ax[2].set_xlabel(r"Finite System in $Z|_{K_Y=0}$",fontsize=26)

# puntos de alta simetria, valor que correspomde en k_path

savefig("Finite_systems_Grushin.pdf",bbox_inches='tight')

Interactivo

Show code cell source Hide code cell source

#Parámetros


@interact(a=(0,1,0.1),m=(0,1.5,0.1), tp=(0,1.5,0.1))
# tp          #hopping paralelo
def WSHTot(a=0.5,m=0.5,tp=0.5):
    tl = tp*sqrt(1-m**2)#hopping perpendicular

    ##################----------------Inicia TB--------------------#######################
    lat = [[a,0,0],[0,a,0],[0,0,a]]
    orb = [[0,0,0],[1/2,1/2,1/2]] #H, solo los sitios A[000] B1/2[111]

    WSH = tb_model(3,3,lat,orb)

    #DIAGONAL
    WSH.set_hop(tp/2, 0, 0,[0,0,1])#de que sitio a que sitio va el hoping, [la exp que lleva ese parametro], Conjugado ya no es
                                    #necesario, está implícito porque es Hermitiano.
    WSH.set_hop(-tp/2, 1, 1,[0,0,1])

    WSH.set_onsite([-tp*m,+tp*m]) # No hay hooping, es energia

    #tl*sin(k_x*a)
    WSH.set_hop(tl/(2j), 0, 1,[1,0,0])   #Da el transpuesto conjudado (hermiticidad del programa)
    WSH.set_hop(-tl/(2j), 0, 1,[-1,0,0]) # de 0 a 1 fuera de la diagonal
    #-tl*sin(k_y*a)
    WSH.set_hop(-tl/(2), 0, 1,[0,1,0])
    WSH.set_hop(tl/(2), 0, 1,[0,-1,0])

    ###############---------Inicia extraccion de información-----------##############
    k                     = [[0,0,-0.5],[0,0,0.0],[0,0,0.5]] # Punto por los cuales que quiero que pase. Son los punto de al simetria
                                     #unidades en unidades de V de red 1=2pi/a
    k_label               = ["-Z",r"$\Gamma$","Z"]
    (k_vec,k_dist,k_node) = WSH.k_path(k,1001,report=False)
    Ek,U                  = WSH.solve_all(k_vec,eig_vectors=True)

    #######################---Graficos----######################
    pm=plot(k_dist,Ek[0,:])
    pd=plot(k_dist,Ek[1,:])
    xticks(k_node,labels=k_label) # puntos de alta simetria, valor que correspomde en k_path
    # xsticklabels(k_label)
    xlabel(r"$K_Z$")
    ylabel("E")


Exploración de la variación de parámetros.

Show code cell source Hide code cell source

def WSHTot(a=0.5,m=0.5,tp=0.5):
    tl = tp*sqrt(1-m**2)#hopping perpendicular

    ##################----------------Inicia TB--------------------#######################
    lat = [[a,0,0],[0,a,0],[0,0,a]]
    orb = [[0,0,0],[1/2,1/2,1/2]] #H, solo los sitios A[000] B1/2[111]

    WSH = tb_model(3,3,lat,orb)

    #DIAGONAL
    WSH.set_hop(tp/2, 0, 0,[0,0,1])#de que sitio a que sitio va el hoping, [la exp que lleva ese parametro], Conjugado ya no es
                                    #necesario, está implícito porque es Hermitiano.
    WSH.set_hop(-tp/2, 1, 1,[0,0,1])

    WSH.set_onsite([-tp*m,+tp*m]) # No hay hooping, es energia

    #tl*sin(k_x*a)
    WSH.set_hop(tl/(2j), 0, 1,[1,0,0])   #Da el transpuesto conjudado (hermiticidad del programa)
    WSH.set_hop(-tl/(2j), 0, 1,[-1,0,0]) # de 0 a 1 fuera de la diagonal
    #-tl*sin(k_y*a)
    WSH.set_hop(-tl/(2), 0, 1,[0,1,0])
    WSH.set_hop(tl/(2), 0, 1,[0,-1,0])

    ###############---------Inicia extraccion de información-----------##############
    k                     = [[0,0,-0.5],[0,0,0.0],[0,0,0.5]] # Punto por los cuales que quiero que pase. Son los punto de al simetria
                                     #unidades en unidades de V de red 1=2pi/a
    k_label               = ["-Z",r"$\Gamma$","Z"]
    (k_vec,k_dist,k_node) = WSH.k_path(k,1001,report=False)
    Ek,U                  = WSH.solve_all(k_vec,eig_vectors=True)
    return (k_dist, Ek, U, k_node, k_label )


Show code cell source Hide code cell source

fig, axs = plt.subplots(2, 2,figsize=(15, 11),
                       gridspec_kw = {'wspace':0.4, 'hspace':0.4, 'width_ratios': [1, 1]})

k_dist, Ek, U, k_node, k_label=WSHTot(0.5,0.5,0.5)
axs[0, 0].plot(k_dist,Ek[0])
axs[0, 0].plot(k_dist, Ek[1])
axs[0, 0].set_xticks(k_node)
axs[0, 0].set_xticklabels(k_label)
axs[0, 0].set_title(r"$a=0.5,m=0.5,t_\perp=0.5$")
axs[0,0].set(xlabel=r'$K_z$', ylabel='E[t]')

k_dist, Ek, U, k_node, k_label=WSHTot(0.5,1.0,0.5)
axs[0, 1].plot(k_dist, Ek[0])
axs[0, 1].plot(k_dist, Ek[1])
axs[0, 1].set_xticks(k_node)
axs[0, 1].set_xticklabels(k_label)
axs[0, 1].set_title(r'$a=0.5,m=1.0,t_\perp=0.5$')

k_dist, Ek, U, k_node, k_label=WSHTot(0.5,0.5,1.0)
axs[1, 0].plot(k_dist, Ek[0])
axs[1, 0].plot(k_dist, Ek[1])
axs[1, 0].set_xticks(k_node)
axs[1, 0].set_xticklabels(k_label)
axs[1, 0].set_title(r'$a=0.5,m=0.5,t_\perp=1.0$')
axs[1,0].set(xlabel=r'$K_z$', ylabel='E[t]')

k_dist, Ek, U, k_node, k_label=WSHTot(1.0,0.5,0.5)
axs[1, 1].plot(k_dist, Ek[0])
axs[1, 1].plot(k_dist, Ek[1])
axs[1, 1].set_xticks(k_node)
axs[1, 1].set_xticklabels(k_label)
axs[1, 1].set_title(r'$a=1.0,m=0.5,t_\perp=0.5$')

for ax in axs.flat:

    ax.set_xlim(0,2)
    ax.set_ylim(-1,1)
    ax.set_yticks(linspace(-1.5,1.5,5))
    ax.spines['right'].set_visible(False)
    ax.spines['top'].set_visible(False)

     # puntos de alta simetria, valor que correspomde en k_path
savefig("VarGrushin.pdf",bbox_inches='tight')

En la figura enterior se puede observar los efectos de la variación de cada uno de los parámetros del Hamiltoniano.
